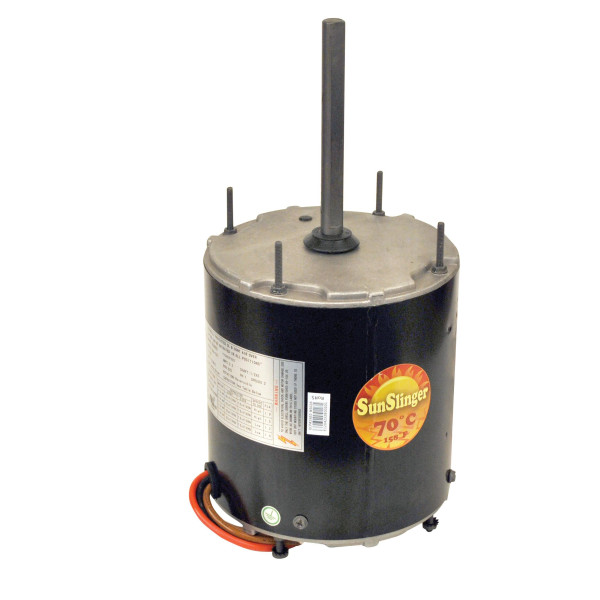

MARS 20471 1/4-3/4HP Multi HP 1075rpm Condenser Fan Motor 6 poles, 1 shaft, TEAO Enclosure, 2 speeds, Frame 48, Reversible, 208-230 V, 60 Hz, 1 Ph, 15mfd/440VAC Run Capacitor

MARS 20471 1/4-3/4HP Multi HP 1075rpm Condenser Fan Motor 6 poles, 1 shaft, TEAO Enclosure, 2 speeds, Frame 48, Reversible, 208-230 V, 60 Hz, 1 Ph, 15mfd/440VAC Run Capacitor
Use: Inted for Air Conditioing condensing Units
All angle. Rheem mounting holes w/screws installed. Trane 4.33 bolt circle mounting holes and self tapping screws
Extended thru bolt or band mounting and extra nuts
Capacitor requirement noted on motor label. Capacitor 15mfd 440VAC not included
Water slinger on shaft. Extra set of nuts on mounting studs

Weight : 23.5 LBR
Volume : 0.41933333333333 FTQ
Model : 20471
UPC-EAN : 685744204718

Reference G20471

Condition New

Data sheet

Product Characteristic: Use: Inted for Air Conditioing condensing Units
All angle. Rheem mounting holes w/screws installed. Trane 4.33 bolt circle mounting holes and self tapping screws
Extended thru bolt or band mounting and extra nuts

Capacitor requirement noted on motor label. Capacitor 15mfd 440VAC not included

Water slinger on shaft. Extra set of nuts on mounting studs
Volume: 0.41933333333333 FTQ
Model: 20471
UPC-EAN: 685744204718
Sales Unit: EA
Origin: China
US Tariff Code: 8501.20.6000
Base Unit: EA
Dimensions: 6.8 x 7.2
