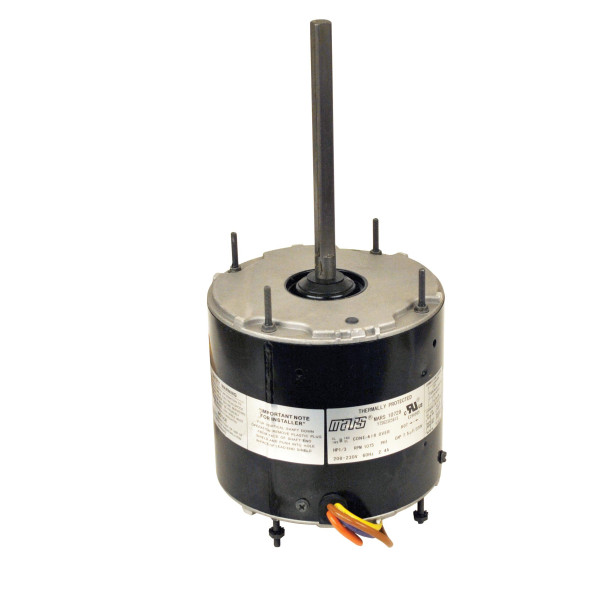

MARS 10729 Outdoor Condenser Fan Motor 1/3HP 1075rpm 6poles 1shaft TEAO Enclosure 1speed 5.6diameter Reversible 208-230V/60Hz/1Ph 7.5mfd/370VAC Run Capacitor

MARS 10729 Outdoor Condenser Fan Motor 1/3HP 1075rpm 6poles 1shaft TEAO Enclosure 1speed 5.6diameter Reversible 208-230V/60Hz/1Ph 7.5mfd/370VAC Run Capacitor
MARS all angle outdoor condenser fan motors are designed for either shaft-up or shaft-down applications. End shields are enclosed for weather protection.
A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications
All angle. Rheem mounting holes w/screws installed. Water slinger on shaft
Thru bolt or band mounting. Capacitor requirement noted on motor label. Double full flatted shaft
Class B insulation. Thermal overload protected. Fan duty, continuous, air over. Totally enclosed. 36 inch leads
Volume : 0.58 FTQ

Weight : 16 LBR
Model : 10729
UPC-EAN : 685744107293

Condenser fan motor for Air conditioning outside unit

This product replaces original part numbers and models not limited to:

FSE1036S, 1861, D908, 3729, X413, 43729, 01-0162, W51-13CJA1-01, P257-8729, WG840729, S1-FHM3729

Reference G10729

Condition New

Data sheet

Product Characteristic: MARS all angle outdoor condenser fan motors are designed for either shaft-up or shaft-down applications. End shields are enclosed for weather protection.
A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications
All angle. Rheem mounting holes w/screws installed. Water slinger on shaft
Thru bolt or band mounting. Capacitor requirement noted on motor label. Double full flatted shaft
Class B insulation. Thermal overload protected. Fan duty, continuous, air over. Totally enclosed. 36 inch leads
Model: 10729
UPC-EAN: 685744107293
Sales Unit: EA
Origin: China
US Tariff Code: 8501.20.6000
Base Unit: EA
Dimensions: 6.7 x 7.4 x 14.9
