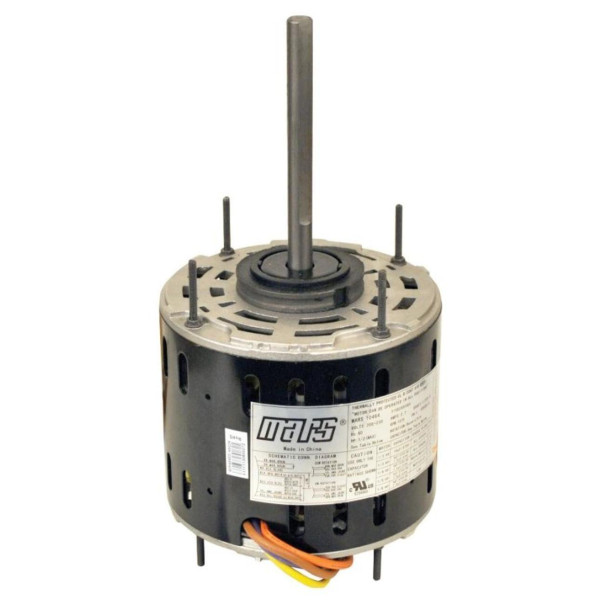

MARS 10464 Four Speed Direct Drive Blower Motor 1/6 -1/2 HP 1075rpm 208-230V/60Hz/1Ph Sleeve 1shaft OAO Enclosure 4 speed

MARS 10464 Four Speed Direct Drive Blower Motor 1/6 -1/2 HP 1075rpm 208-230V/60Hz/1Ph Sleeve 1shaft OAO Enclosure 4 speed
MARS all angle outdoor condenser fan motors are designed for either shaft-up or shaft-down applications. End shields are enclosed for weather protection.
A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications
All angle. Rheem mounting holes w/screws installed. Water slinger on shaft
Thru bolt or band mounting. Capacitor requirement noted on motor label. Double full flatted shaft
Class B insulation. Thermal overload protected. Fan duty, continuous, air over. Totally enclosed. 36 inch leads

Weight : 15 LBR
Model : 10464
UPC-EAN :

Reference G10464

Condition New

Data sheet

Product Characteristic: MARS all angle outdoor condenser fan motors are designed for either shaft-up or shaft-down applications. End shields are enclosed for weather protection.
A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications
All angle. Rheem mounting holes w/screws installed. Water slinger on shaft
Thru bolt or band mounting. Capacitor requirement noted on motor label. Double full flatted shaft
Class B insulation. Thermal overload protected. Fan duty, continuous, air over. Totally enclosed. 36 inch leads
Model: 10464
Sales Unit: EA
Origin: China
US Tariff Code: 8501.20.6000
Base Unit: EA
