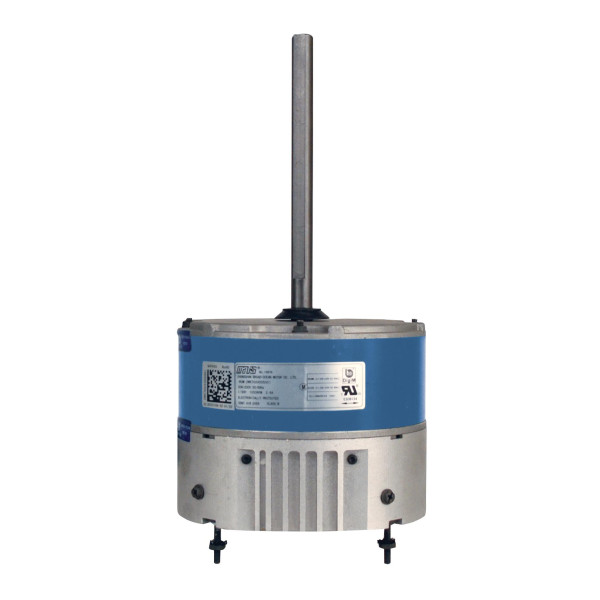

MARS 10874 Condenser Fan Motor Multi-Horsepower 1/8 -1/3 HP ECM Replacement 825/1075rpm , 230 V, 5.5 in, Frame 48, Reversible Rotation, Direct Drive, Variable Speed, Shaft down only mounting

MARS 10874 Condenser Fan Motor Multi-Horsepower 1/8 -1/3 HP ECM Replacement 825/1075rpm , 230 V, 5.5 in, Frame 48, Reversible Rotation, Direct Drive, Variable Speed, Shaft down only mounting
zure connects directly to OEM harnesses; additional module or adapter is not required
Replaces 16 Pin OEM Variable Speed ECM, PWM, 2.0, 2.3, 2.5 EON; and Evergreen VS, Rescue EZ16 Replaces Many 4 Pin OEM Variable Speed ECM 3.0; and Evergreen VS Replaces Constant Torque X13, Endura Pro, SelecTech; and Evergreen EM, Rescue EZ13
4 speeds plus 625 RPM constant fan mode
High efficiency 85. Multi-horsepower, dual voltage. Belly band mount
Volume : 0.5 FTQ

Weight : 15 LBR
Model : 10874
UPC-EAN :

Reference G10874

Condition New

Data sheet

Product Characteristic: zure connects directly to OEM harnesses; additional module or adapter is not required
Replaces 16 Pin OEM Variable Speed ECM, PWM, 2.0, 2.3, 2.5 EON; and Evergreen VS, Rescue EZ16 Replaces Many 4 Pin OEM Variable Speed ECM 3.0; and Evergreen VS Replaces Constant Torque X13, Endura Pro, SelecTech; and Evergreen EM, Rescue EZ13
4 speeds plus 625 RPM constant fan mode
High efficiency 85. Multi-horsepower, dual voltage. Belly band mount
Model: 10874
Sales Unit: EA
Origin: China
US Tariff Code: 8501.20.6000
Base Unit: EA
Dimensions: 7.5 x 6.8 x 14.9
