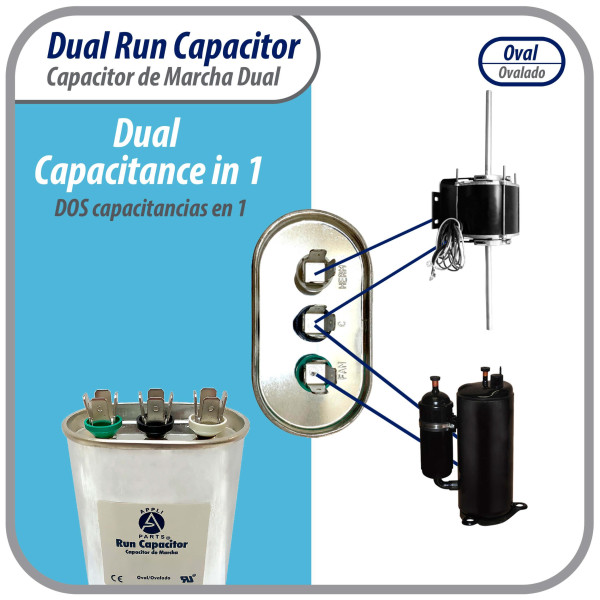

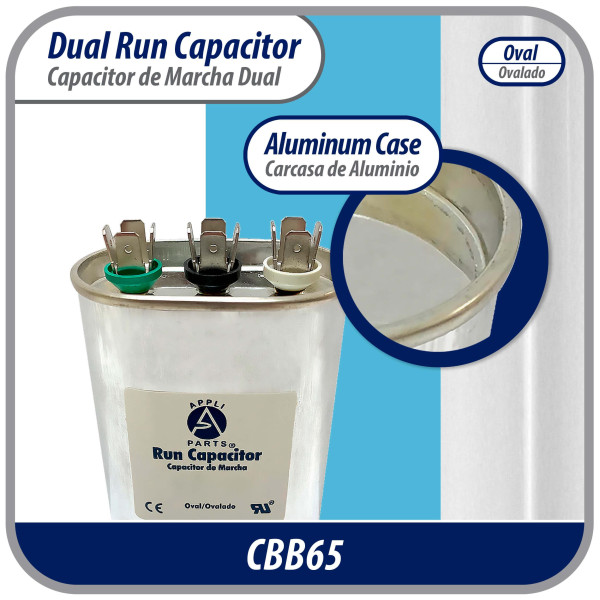

Appli Parts CON-80/5-370 Dual Run Capacitor for ac 80+5 Mfd uF (microfarads) 370VAC CBB65 Oval Universal fit for hvac and other applications 3-1/2in Wide 1-3/4in Depth 4-3/4in High

Appli Parts CON-80/5-370 Dual Run Capacitor for ac 80+5 Mfd uF (microfarads) 370VAC CBB65 Oval Universal fit for hvac and other applications 3-1/2in Wide 1-3/4in Depth 4-3/4in High

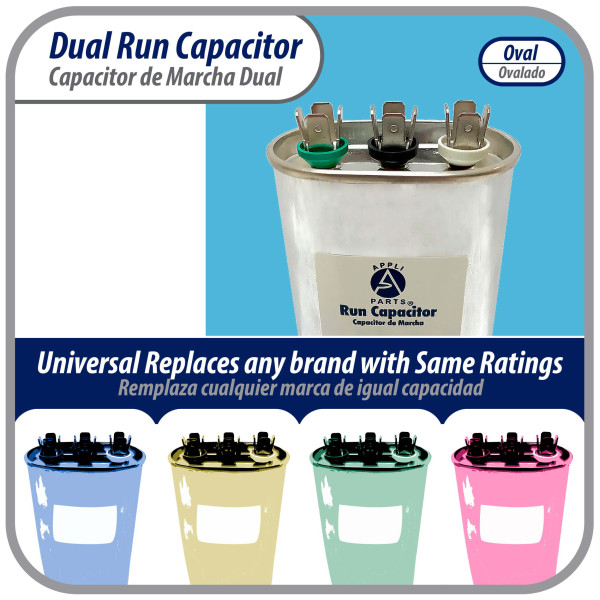

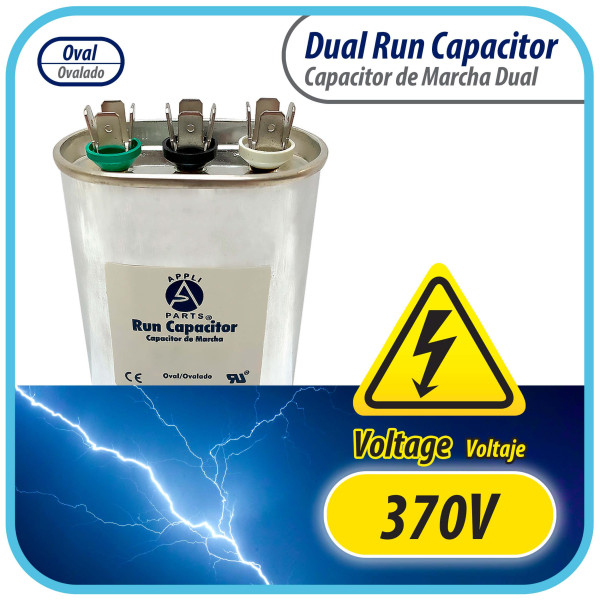

Universal: Replaces any brand with the same capacitance capacity and voltage. Will work for 370V. 1/4 in Male Quick-connect
Guarantee: UL E476928 Certified, Manufactured with No Pcb

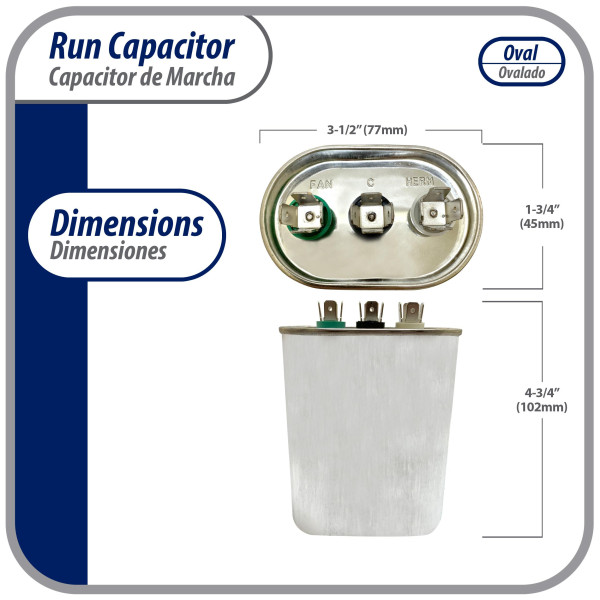

Specs: Tolerance is +/- 5 % of Capacity, Working temperature environment from -40F (-40C) to +194F (90C). Dimensions 4-3/4 in H, 1-3/4 in W, 3-1/2 in L
Protection: Protected for 10,000AFC which means this product will not burst if by any reason is short circuits
Replaces: CAP-80/5-370

Weight : 0.92 LBR
Volume : 0.02170139 FTQ
Model : CON-80/5-370
UPC-EAN : 814245022853

Reference G0319.805

Condition New

Data sheet

Product Characteristic: Universal: Replaces any brand with the same capacitance capacity and voltage. Will work for 370V. 1/4 in Male Quick-connect
Guarantee: UL E476928 Certified, Manufactured with No Pcb

Specs: Tolerance is +/- 5 % of Capacity, Working temperature environment from -40F (-40C) to +194F (90C). Dimensions 4-3/4 in H, 1-3/4 in W, 3-1/2 in L
Protection: Protected For 10,000Afc Which Means This Product Will Not Burst If By Any Reason Is Short Circuits
Replaces: CAP-80/5-370
Volume: 0.02170139 FTQ
Model: CON-80/5-370
UPC-EAN: 814245022853
Sales Unit: EA
Origin: China
US Tariff Code: 8532.25.0020
Base Unit: EA
Dimensions: 5 x 2 x 3.75
