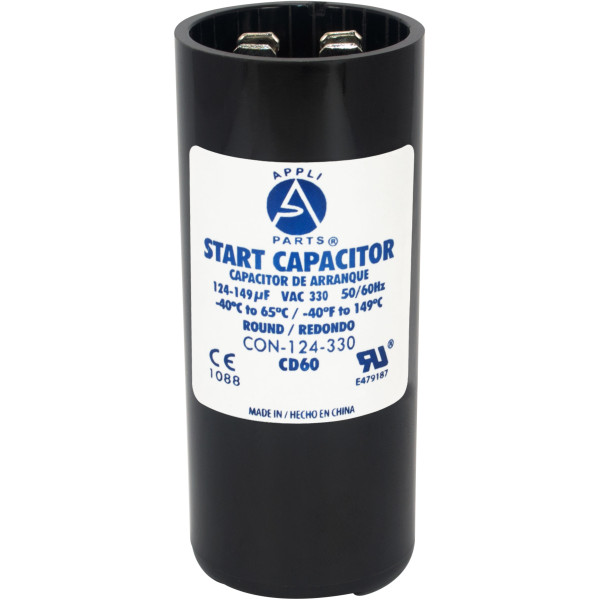

Appli Parts CON-124-330 Motor Start Capacitor 124-149 MFD uF, 330 VAC. Universal for Electric Motor Applications, 1.44 in Wide, 3.38 in Height
SKU
G0322.124
Appli Parts CON-124-330 Motor Start Capacitor 124-149 MFD uF, 330 VAC. Universal for Electric Motor Applications, 1.44 in Wide, 3.38 in Height

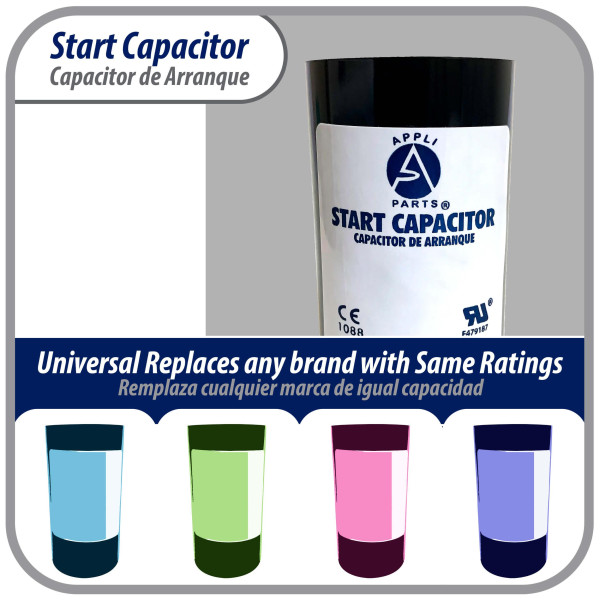

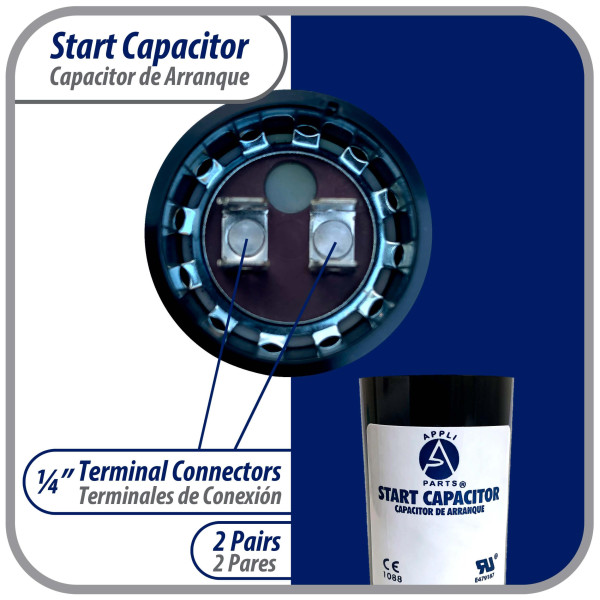

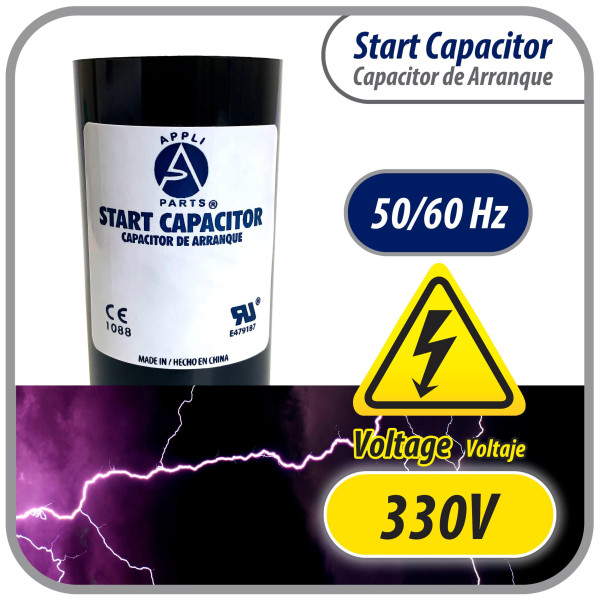

Universal Compatibility: Replaces any brand with the same capacitance capacity and voltage. Will work for 330 VAC with 1/4 in Male Quick-connect. Replaces 2MEL9 CAP-124-330
Certified: A CD60 type capacitor is a single phase motor start capacitor, electrolytic, non polarized, high capacitance, and intermittent duty type. Designed to provide high starting torque for a few seconds when the motor starts.

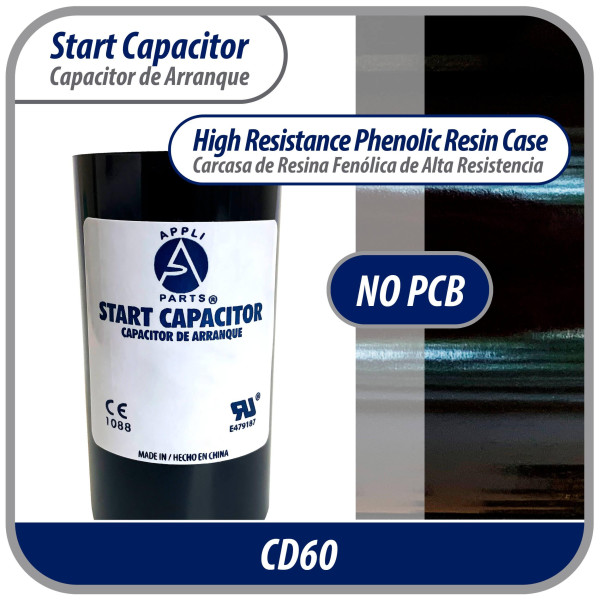

High quality construction: Manufactured under UL certification E479187, CD60 type, PCB free for safe and reliable use. Built with durable materials for greater strength and long service life.

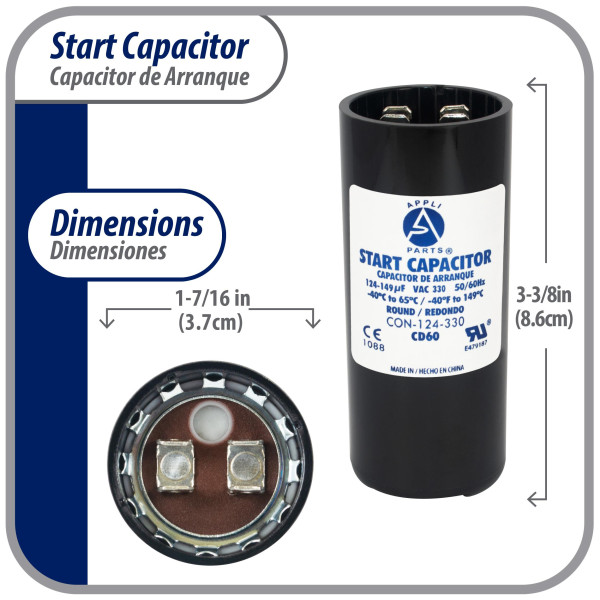

Technical Specs: Tolerance Is +/- 20% Of Capacity, Working Temperature Environment From -40F to +149F, 50/60 Hz. Dimensions 1.44 in Wide, 3.38 in Height

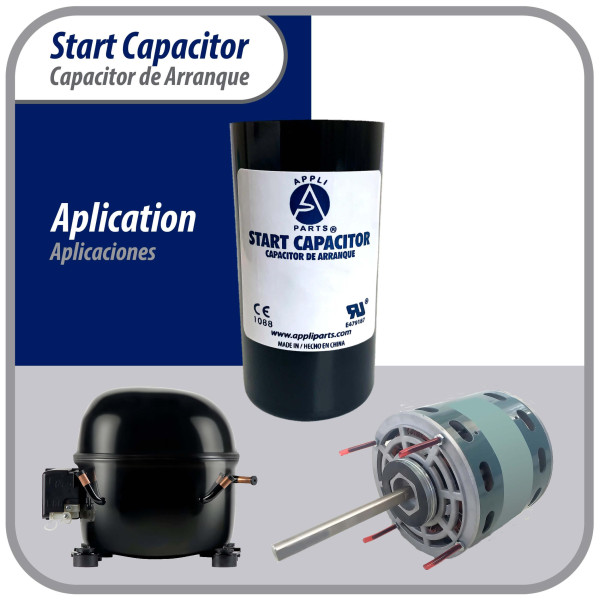

Applications: Ideal for motor start circuits in water pumps, pool pumps, table saws, compressors, and other general applications. Verify that dimensions and specifications match the product being replaced.
Weight : 0.6 LBR
Volume : 0.0109375 FTQ
Model : CON-124-330
UPC-EAN : 814245023621
Universal Compatibility: Replaces any brand with the same capacitance capacity and voltage. Will work for 330 VAC with 1/4 in Male Quick-connect. Replaces 2MEL9 CAP-124-330
Certified: A CD60 type capacitor is a single phase motor start capacitor, electrolytic, non polarized, high capacitance, and intermittent duty type. Designed to provide high starting torque for a few seconds when the motor starts.
High quality construction: Manufactured under UL certification E479187, CD60 type, PCB free for safe and reliable use. Built with durable materials for greater strength and long service life.
Technical Specs: Tolerance Is +/- 20% Of Capacity, Working Temperature Environment From -40F to +149F, 50/60 Hz. Dimensions 1.44 in Wide, 3.38 in Height
Applications: Ideal for motor start circuits in water pumps, pool pumps, table saws, compressors, and other general applications. Verify that dimensions and specifications match the product being replaced.
Weight : 0.6 LBR
Volume : 0.0109375 FTQ
Model : CON-124-330
UPC-EAN : 814245023621
G0322.124
New
Data sheet
- Product Characteristic
Universal Compatibility: Replaces any brand with the same capacitance capacity and voltage. Will work for 330 VAC with 1/4 in Male Quick-connect. Replaces 2MEL9 CAP-124-330
Certified: A CD60 type capacitor is a single phase motor start capacitor, electrolytic, non polarized, high capacitance, and intermittent duty type. Designed to provide high starting torque for a few seconds when the motor starts.
High quality construction: Manufactured under UL certification E479187, CD60 type, PCB free for safe and reliable use. Built with durable materials for greater strength and long service life.
Technical Specs: Tolerance Is +/- 20% Of Capacity, Working Temperature Environment From -40F to +149F, 50/60 Hz. Dimensions 1.44 in Wide, 3.38 in Height
Applications: Ideal for motor start circuits in water pumps, pool pumps, table saws, compressors, and other general applications. Verify that dimensions and specifications match the product being replaced.- Volume
- 0.0109375 FTQ
- Model
- CON-124-330
- UPC-EAN
- 814245023621
- Sales Unit
- EA
- Origin
- China
- US Tariff Code
- 8532.25.0020
- Base Unit
- EA
- Dimensions
- 3.5 x 3.6 x 1.5
Specific References
- UPC
- 814245023621
- MPN
- CON-124-330
