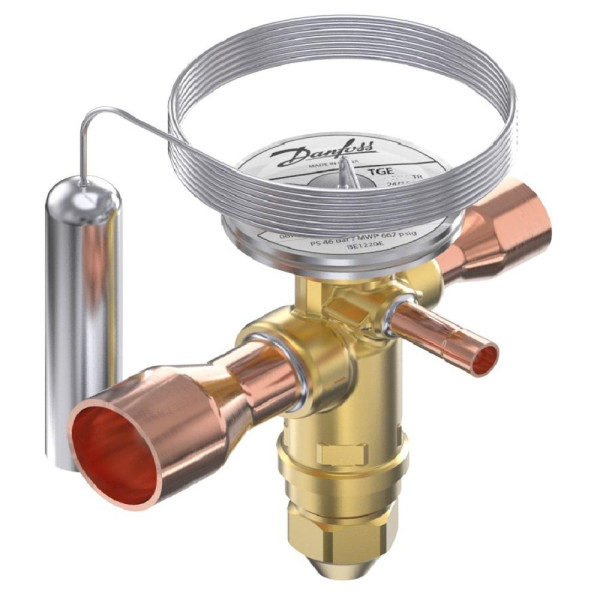

Danfoss 067N9407 11TR Thermostatic expansion valve, TGE, R22,R407C, 5/8x7/8 in Solder, ODF, 1/4 in Externally equalized, Bi-flow, -22 to 60 F

Tags TXV Expansion element orifice refrigeration air conditioning

Danfoss 067N9407 11TR Thermostatic expansion valve, TGE, R22,R407C, 5/8x7/8 in Solder, ODF, 1/4 in Externally equalized, Bi-flow, -22 to 60 F
Applications: Water Chillers. Bus A/C. Rooftop Units. Heat Pumps. Refrigerated Containers. Other A/C and Refrigeration Systems
Features: Balance port design. Biflow with expansion in both directions. Low hysteresis. Long lifetime for heat pump applications. Laser welded, stainless steel power element, capillary tube, and bulb
Straightway flow. Adjustable superheat setting. UL Certified
Maximum Operating Temperature +300F
Replaces: SVE-8, SVE-10, EBSVE 8, EVRE 8, EVRE 10, HFES-8H, HFES-10H, TRAE-10H 067N2007, 067N2027, 067N9407

Weight : 1.7 LBR
Volume : 0.04196506 FTQ
Model : 067N9407
UPC-EAN : 5702428488952

Reference G067N9407

Condition New

Data sheet

Product Characteristic: Applications: Water Chillers. Bus A/C. Rooftop Units. Heat Pumps. Refrigerated Containers. Other A/C and Refrigeration Systems
Features: Balance port design. Biflow with expansion in both directions. Low hysteresis. Long lifetime for heat pump applications. Laser welded, stainless steel power element, capillary tube, and bulb
Straightway flow. Adjustable superheat setting. UL Certified
Maximum Operating Temperature +300F

Replaces: SVE-8, SVE-10, EBSVE 8, EVRE 8, EVRE 10, HFES-8H, HFES-10H, TRAE-10H 067N2007, 067N2027, 067N9407
Model: 067N9407
UPC-EAN: 5702428488952
Sales Unit: EA
Origin: China
US Tariff Code: 8481.80.9050
Base Unit: EA
Dimensions: 4.25 x 3.25 x 5.25
