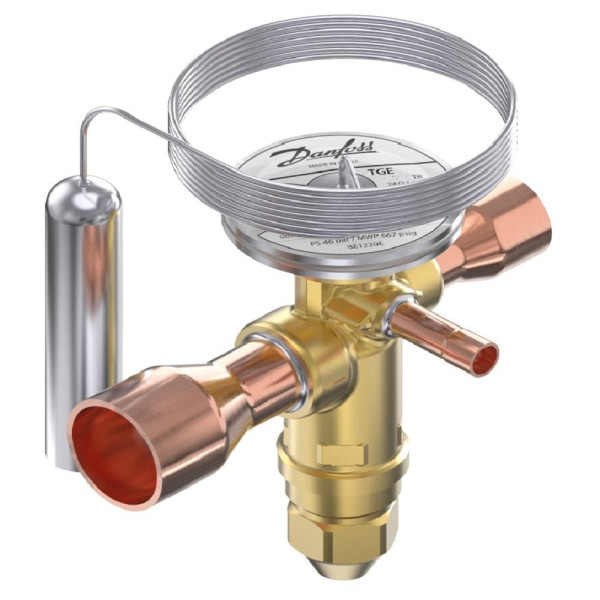

Danfoss 067N5255 20TR Thermostatic expansion valve, TGE, R134a,R513A, 1-1/8x1 1/8 in Solder, ODF, 1/4 in Externally equalized, Bi-flow, -40 to 50 F, replaces 067N5241

Tags TXV Expansion element orifice refrigeration air conditioning

Danfoss 067N5255 20TR Thermostatic expansion valve, TGE, R134a,R513A, 1-1/8x1 1/8 in Solder, ODF, 1/4 in Externally equalized, Bi-flow, -40 to 50 F, replaces 067N5241
Applications: Water Chillers. Bus A/C. Rooftop Units. Heat Pumps. Refrigerated Containers. Other A/C and Refrigeration Systems
Features: Balance port design. Biflow with expansion in both directions. Low hysteresis. Long lifetime for heat pump applications. Laser welded, stainless steel power element, capillary tube, and bulb
Straightway flow. Adjustable superheat setting. UL Certified
Maximum Operating Temperature +210F
Applications: Traditional refrigeration, Residential air conditioning, Rooftops, Commercial air conditioning, Chillers

Weight : 2.4 LBR
Volume : 0.04196506 FTQ
Model : 067N5255
UPC-EAN : 5702428488556

Reference G067N5255

Condition New

Data sheet

Product Characteristic: Applications: Water Chillers. Bus A/C. Rooftop Units. Heat Pumps. Refrigerated Containers. Other A/C and Refrigeration Systems
Features: Balance port design. Biflow with expansion in both directions. Low hysteresis. Long lifetime for heat pump applications. Laser welded, stainless steel power element, capillary tube, and bulb
Straightway flow. Adjustable superheat setting. UL Certified
Maximum Operating Temperature +210F
Applications: Traditional refrigeration, Residential air conditioning, Rooftops, Commercial air conditioning, Chillers
Model: 067N5255
UPC-EAN: 5702428488556
Sales Unit: EA
Origin: China
US Tariff Code: 8481.80.9050
Base Unit: EA
Dimensions: 4.25 x 3.25 x 5.25
