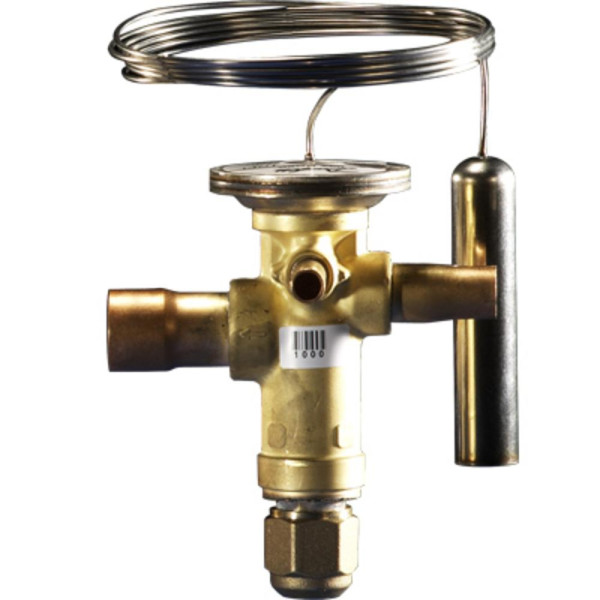

Danfoss 067N9419 38TR Thermostatic expansion valve, TGE, R22,R407C, 1-1/8x1 3/8 in Solder, ODF, 1/4 in Externally equalized, Bi-flow, -22 to 60 F

Tags TXV Expansion element orifice refrigeration air conditioning

Danfoss 067N9419 38TR Thermostatic expansion valve, TGE, R22,R407C, 1-1/8x1 3/8 in Solder, ODF, 1/4 in Externally equalized, Bi-flow, -22 to 60 F
Applications: Water Chillers. Bus A/C. Rooftop Units. Heat Pumps. Refrigerated Containers. Other A/C and Refrigeration Systems
Features: Balance port design. Biflow with expansion in both directions. Low hysteresis. Long lifetime for heat pump applications. Laser welded, stainless steel power element, capillary tube, and bulb
Straightway flow. Adjustable superheat setting. UL Certified
Maximum Operating Temperature +300F
Replaces: OVE 40, TRAE-40H, 067N9419

Weight : 1.7 LBR
Volume : 0.04196506 FTQ
Model : 067N9419
UPC-EAN : 5702428488891

Reference G067N9419

Condition New

Data sheet

Product Characteristic: Applications: Water Chillers. Bus A/C. Rooftop Units. Heat Pumps. Refrigerated Containers. Other A/C and Refrigeration Systems
Features: Balance port design. Biflow with expansion in both directions. Low hysteresis. Long lifetime for heat pump applications. Laser welded, stainless steel power element, capillary tube, and bulb
Straightway flow. Adjustable superheat setting. UL Certified
Maximum Operating Temperature +300F

Replaces: OVE 40, TRAE-40H, 067N9419
Model: 067N9419
UPC-EAN: 5702428488891
Sales Unit: EA
Origin: China
US Tariff Code: 8481.80.9050
Base Unit: EA
Dimensions: 4.25 x 3.25 x 5.25
