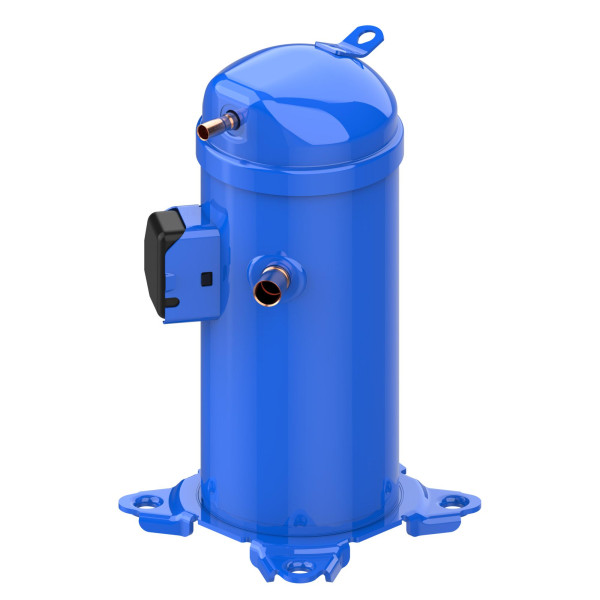

Danfoss HLH061T1LC6A 5 tons 61,000 btu/h R410A R454BScroll compressor for Air conditioning 208-230/1/60 V/Ph/Hz Discharge 1/2 in, Suction 7/8 in, ODF, POE Oil 121L2042, 121L2039 Replaces HLH060U1LP6

Tags AC Compressor Condenser Compressor Aircon Compressor Oudoor Unit compressor

Danfoss HLH061T1LC6A 5 tons 61,000 btu/h R410A R454BScroll compressor for Air conditioning 208-230/1/60 V/Ph/Hz Discharge 1/2 in, Suction 7/8 in, ODF, POE Oil 121L2042, 121L2039 Replaces HLH060U1LP6
Use: Scroll Compressor Replacement for Air Conditioning Units. HLH061T1LP6
Electrical Components: Run Capacitor 80mfd 370VAC, Start Capacitor 189-227 mfd 330VAC, Start Relay RVA 2ABKO
Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations
Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company
Aditional Details: 1.57L PVE Oil Charge, Internal overload protector

Weight : 95 LBR
Model : HLH061T1LC6A
UPC-EAN : 5702428222181

Reference G0315.060T14

Condition New

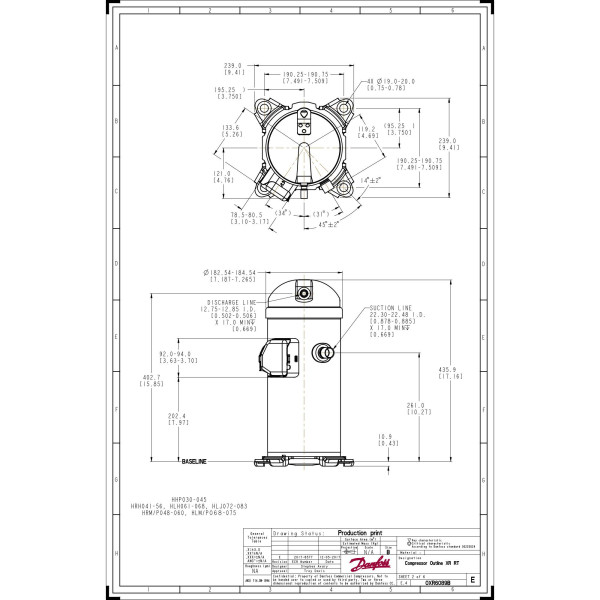

Data sheet

Product Characteristic: Use: Scroll Compressor Replacement for Air Conditioning Units. HLH061T1LP6

Electrical Components: Run Capacitor 80mfd 370VAC, Start Capacitor 189-227 mfd 330VAC, Start Relay RVA 2ABKO
Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations
Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company
Aditional Details: 1.57L PVE Oil Charge, Internal overload protector
Model: HLH061T1LC6A
UPC-EAN: 5702428222181
Sales Unit: EA
Origin: USA
US Tariff Code: 8414.30.8070
Base Unit: EA
