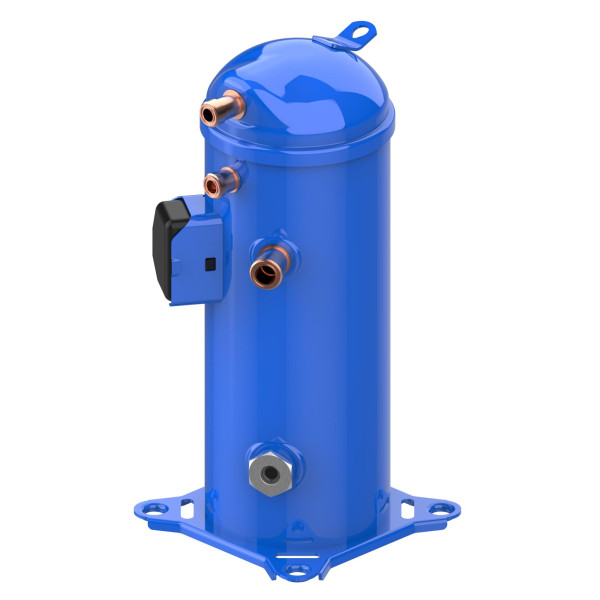

Danfoss LLZ018T2LQ9C 6 HP LBP Refrigeration Scroll Compressor 208-230/3/60 (V/Ph/Hz) R404A, R507, R452A, R448A, R449A, Rotolock Connections, 121L9548, 121L9549, 121L9511, 121L9510, 121L9057

Danfoss LLZ018T2LQ9C 6 HP LBP Refrigeration Scroll Compressor 208-230/3/60 (V/Ph/Hz) R404A, R507, R452A, R448A, R449A, Rotolock Connections, 121L9548, 121L9549, 121L9511, 121L9510, 121L9057
Use: Designed for Commercial Refrigeration Applications
Internal Overload Protector. Precharged 215PZ POE Oil. Screw connectors 10-32 UNF x 9.5
LLZ scroll compressors come equipped with a threaded oil sight glass with 1-1/8in 18 UNEF connection
The oil fill and drain connection and gauge port is a 1/4in male flare connector incorporating a schrader valve
Multiple Refrigerant Applications. Replaces various models 121L9510, 121L9511

Weight : 106.69 LBR
Volume : 4.76 FTQ
Model : 121L9548
UPC-EAN :

Reference G0315.LLZ018T2

Condition New

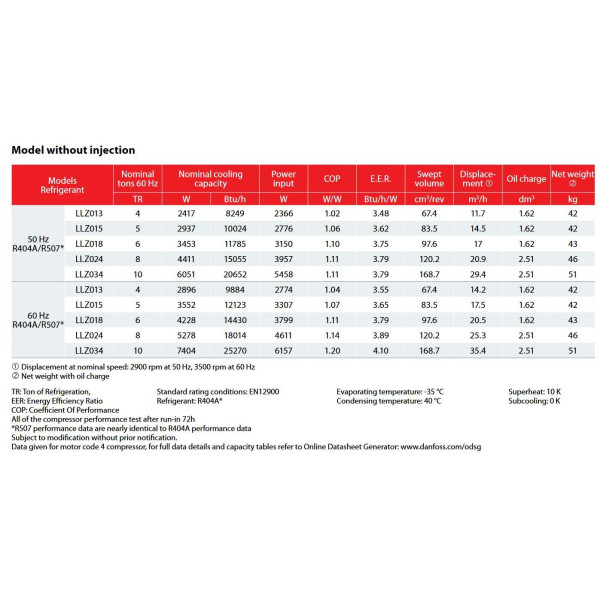

Data sheet

Product Characteristic: Use: Designed for Commercial Refrigeration Applications
Internal Overload Protector. Precharged 215PZ POE Oil. Screw connectors 10-32 UNF x 9.5
LLZ scroll compressors come equipped with a threaded oil sight glass with 1-1/8in 18 UNEF connection
The oil fill and drain connection and gauge port is a 1/4in male flare connector incorporating a schrader valve

Multiple Refrigerant Applications. Replaces various models 121L9510, 121L9511
Model: 121L9548
Sales Unit: EA
Origin: USA
US Tariff Code: 8414.30.4070
Base Unit: EA
Dimensions: 22 x 22 x 17
