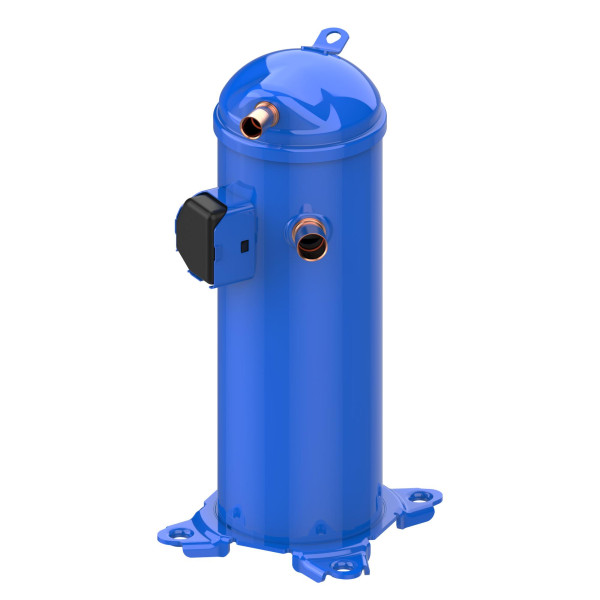

Danfoss DCJ106T2LC8A 9 tons 106,000 btu/h R410A R454B Scroll compressor for Air conditioning 208-230/3/60 V/Ph/Hz Discharge 7/8 in, Suction 1-1/8 in, ODF, PVE Oil 121L8595, 121L5011, 121L5010

Danfoss DCJ106T2LC8A 9 tons 106,000 btu/h R410A R454B Scroll compressor for Air conditioning 208-230/3/60 V/Ph/Hz Discharge 7/8 in, Suction 1-1/8 in, ODF, PVE Oil 121L8595, 121L5011, 121L5010

Danfoss VZH065CJANB Scroll Compressor Inverter 220-240V/3Ph/50-60Hz R410A 120G0153

Tags AC Compressor Condenser Compressor Aircon Compressor Oudoor Unit compressor

Danfoss DCJ106T2LC8A 9 tons 106,000 btu/h R410A R454B Scroll compressor for Air conditioning 208-230/3/60 V/Ph/Hz Discharge 7/8 in, Suction 1-1/8 in, ODF, PVE Oil 121L8595, 121L5011, 121L5010
Use: Scroll Compressor Replacement for Air Conditioning Units
Replaces: 120U2327
Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations
Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company
Aditional Details: 2.46L PVE Oil Charge, Internal overload protector

Weight : 101.86 LBR
Volume : 4.06 FTQ
Model : DCJ106T2LC8
UPC-EAN : 5702428220033

Reference G0315.105T24

Condition New

Data sheet

Product Feature: Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations
Informacion Adicional: 2.46L PVE Carga de Aceite, Proteccion de Sobrecarga Interna
Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company
Replaces: 120U2327
Weight: 101.86 LBR
Volume: 4.06 FTQ
Model: DCJ106T2LC8
UPC-EAN: 5702428220033
Sales Unit: EA
Origin: USA
US Tariff Code: 8414.30.8070
Base Unit: EA
Dimensions: 18 x 15 x 26
Segment: Air Conditioning
