Danfoss DCJ121T4LC6 10 tons 121,000 btu/h R410A Scroll compressor for Air conditioning 380-415/3/50, 460/3/60 V/Ph/Hz Discharge 7/8 in, Suction 1-1/8 in, ODF, PVE Oil 121L5017, 121L5016

Danfoss DCJ121T4LC6 10 tons 121,000 btu/h R410A Scroll compressor for Air conditioning 380-415/3/50, 460/3/60 V/Ph/Hz Discharge 7/8 in, Suction 1-1/8 in, ODF, PVE Oil 121L5017, 121L5016

Danfoss VZH065CJANB Scroll Compressor Inverter 220-240V/3Ph/50-60Hz R410A 120G0153

Tags AC Compressor Condenser Compressor Aircon Compressor Oudoor Unit compressor

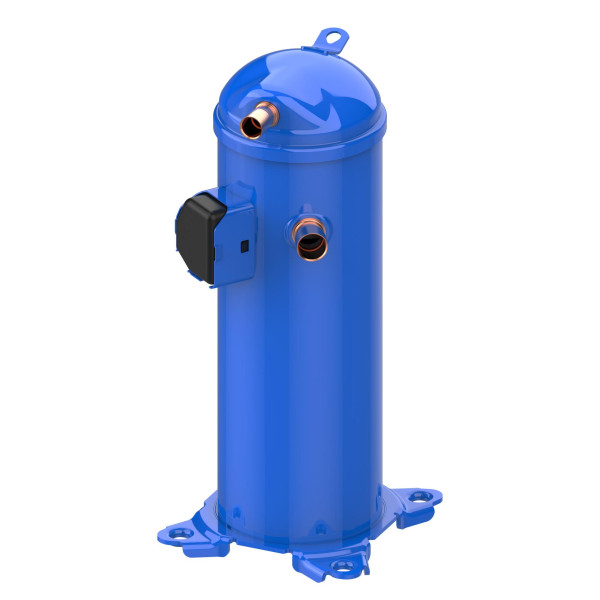

Danfoss DCJ121T4LC6 10 tons 121,000 btu/h R410A Scroll compressor for Air conditioning 380-415/3/50, 460/3/60 V/Ph/Hz Discharge 7/8 in, Suction 1-1/8 in, ODF, PVE Oil 121L5017, 121L5016
Use: Scroll Compressor Replacement for Air Conditioning Units
Replaces: 120U2342, ZP120KCE-TFD
Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations
Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company
Aditional Details: 2.46L PVE Oil Charge, Internal overload protector

Weight : 120 LBR
Model : HCJ120T4LC6
UPC-EAN : 5702428219952

Reference G0315.120T44

Condition New

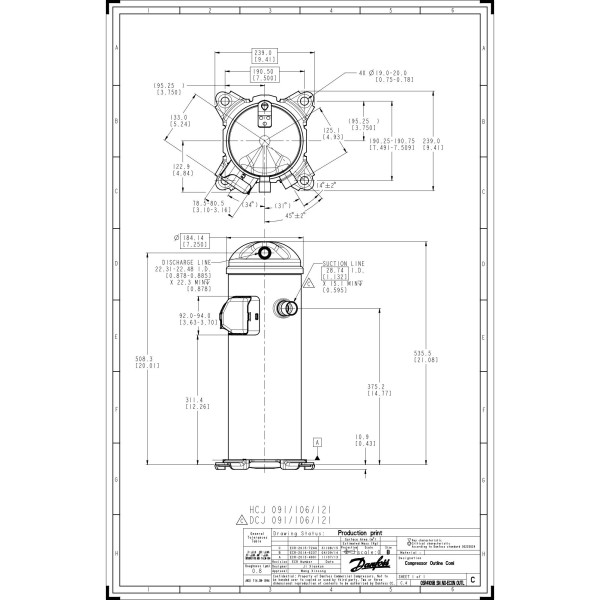

Data sheet

Product Feature: Danfoss H-series scroll compressor for R22/R407C/R410A is available as single compressor and can be assembled in tandem combinations
Informacion Adicional: 2.46L PVE Carga de Aceite, Proteccion de Sobrecarga Interna
Liquid and Suction line connections that line up with those of other major scroll compressor manufacturers, Danfoss scroll compressors can be used to replace compressors made by nearly any company
Replaces: 120U2342, ZP120KCE-TFD
Weight: 120 LBR
Model: HCJ120T4LC6
UPC-EAN: 5702428219952
Sales Unit: EA
Origin: USA
US Tariff Code: 8414.30.8070
Base Unit: EA
Segment: Air Conditioning
