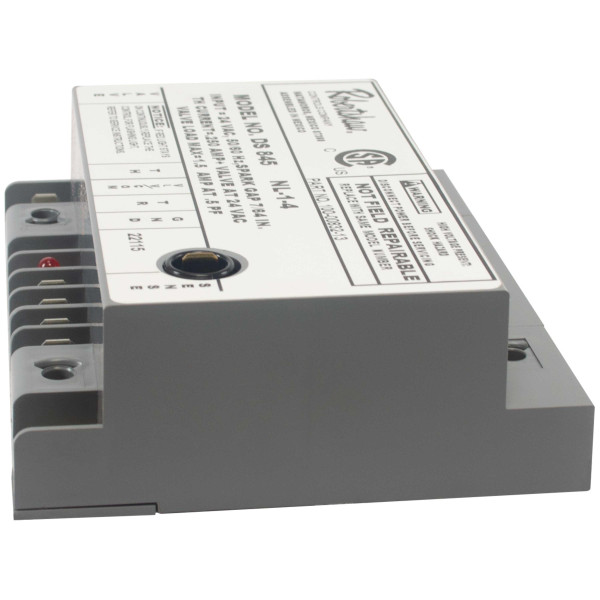

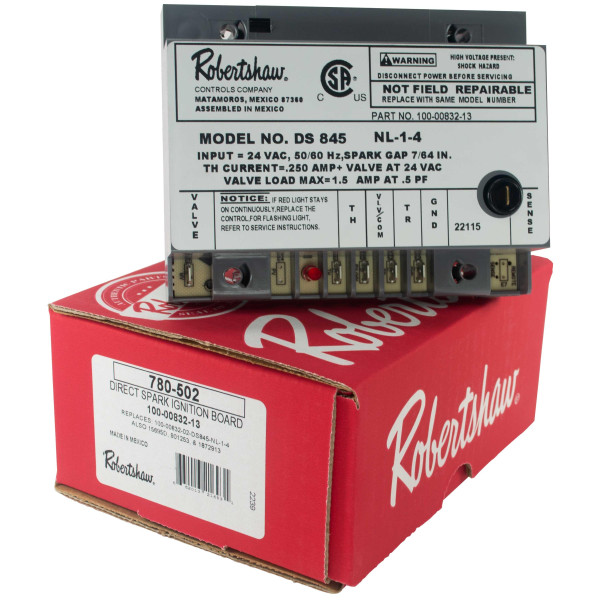

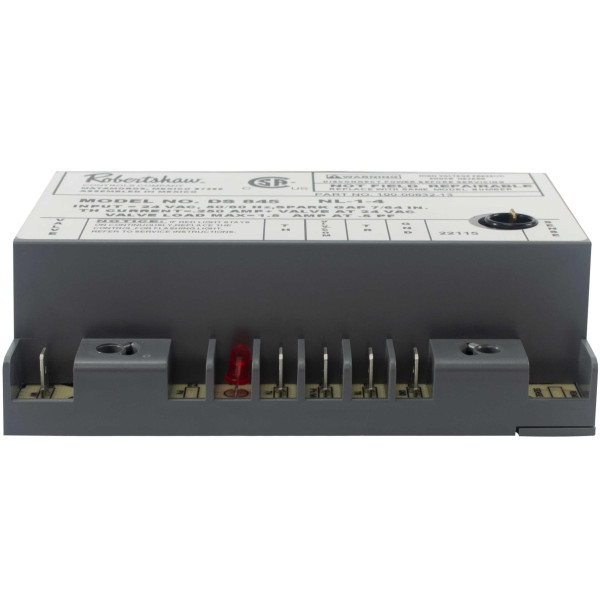

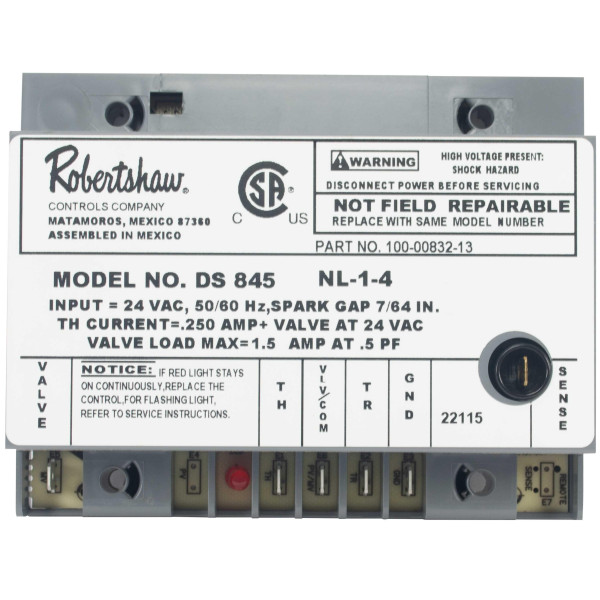

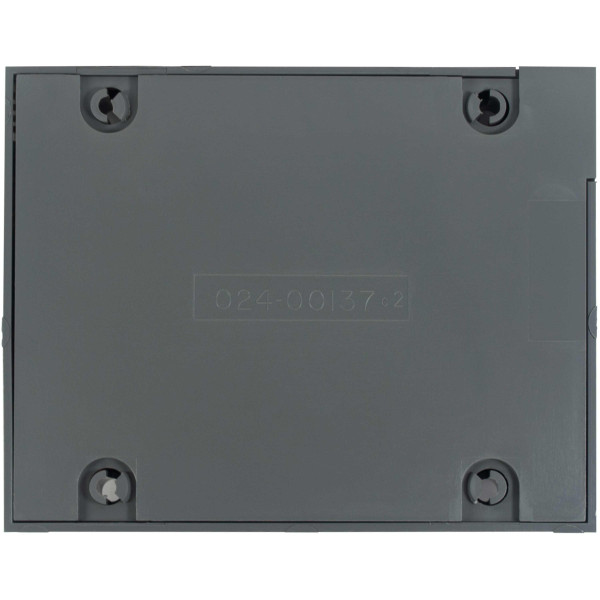

Robertshaw 780-502 Ignition Module Intermittent Pilot 24V Direct Spark Ignition DS 845
After The Gas Is Lit, An Electronic Circuit Proves The Presence Of Flame Using Flame Rectification.
The System Acts On A Demand For Heat By A Switch Or Thermostat To Open The Gas Valve.
At The Same Time, The 780 Series Ignition Control Supplies A Spark To The Electrode Which Ignites The Gas.
When The Thermostat Is Satisfied, The Gas Valve Will Be Closed To Shut Off The Main Burner Gas.
Weight : 1.1 LBR
Model : DS845
UPC-EAN : 662013216931
After The Gas Is Lit, An Electronic Circuit Proves The Presence Of Flame Using Flame Rectification.
The System Acts On A Demand For Heat By A Switch Or Thermostat To Open The Gas Valve.
At The Same Time, The 780 Series Ignition Control Supplies A Spark To The Electrode Which Ignites The Gas.
When The Thermostat Is Satisfied, The Gas Valve Will Be Closed To Shut Off The Main Burner Gas.
Weight : 1.1 LBR
Model : DS845
UPC-EAN : 662013216931
Ignition Starter module
This part replaces original part numbers and models no limited to:
Replaces: 100-00832-02, 100-00832-11, 100-00832-13, 100-00832-22, 100-832-02, 100-832-11, 100-832-13, 100-832-22, 15695D, 901253, 1872913, 1501059801, DS845-NL-1-4, IB72913, S825D1010, S8701004
G780-502
New
Data sheet
- Product Feature
- After The Gas Is Lit, An Electronic Circuit Proves The Presence Of Flame Using Flame Rectification.
- At The Same Time, The 780 Series Ignition Control Supplies A Spark To The Electrode Which Ignites The Gas.
- The System Acts On A Demand For Heat By A Switch Or Thermostat To Open The Gas Valve.
- When The Thermostat Is Satisfied, The Gas Valve Will Be Closed To Shut Off The Main Burner Gas.
- Weight
- 1.1 LBR
- Model
- DS845
- UPC-EAN
- 662013216931
- Sales Unit
- EA
- Origin
- Mexico
- US Tariff Code
- 8481.80.9050
- Base Unit
- EA
- Dimensions
- 7 x 5 x 9
