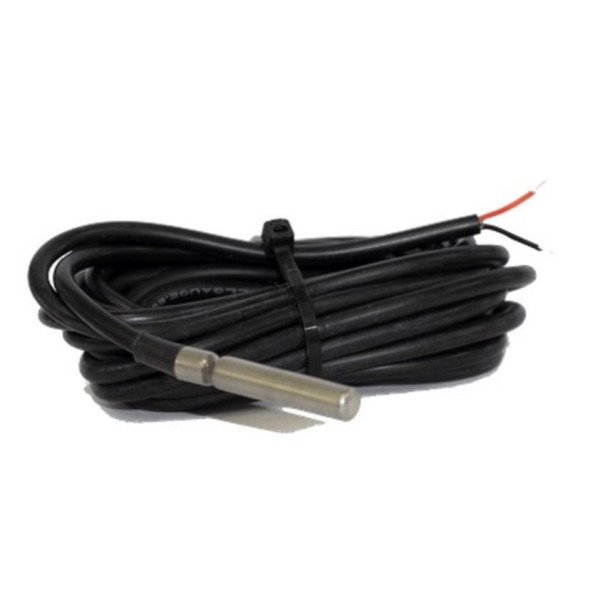

Full Gauge SB-19 Temperature Sensor 8.2 ft (2.5 m), Rollerbag type, NTC Sensor with thermoplastic polyester cable and covered with a stainless steel shell. Operating Temp -58 to 221 F (-50 to 105 C)
SKU
GSB19
Full Gauge SB-19 Temperature Sensor 8.2 ft (2.5 m), Rollerbag type, NTC Sensor with thermoplastic polyester cable and covered with a stainless steel shell. Operating Temp -58 to 221 F (-50 to 105 C)
NTC Resistance of 10K Ohms at 77 F (25 C)
Temperature Range: -58 to 221 F (-50 to 105 C)
PFS Precision Full Scale: 1 percent FS
Response Timer: Less than 8 seconds (in stirred water)
Tensile Test: Pmax 4 kgf
Weight : 0.35 LBR
Volume : 0.015625 FTQ
Model : SB19
UPC-EAN :
NTC Resistance of 10K Ohms at 77 F (25 C)
Temperature Range: -58 to 221 F (-50 to 105 C)
PFS Precision Full Scale: 1 percent FS
Response Timer: Less than 8 seconds (in stirred water)
Tensile Test: Pmax 4 kgf
Weight : 0.35 LBR
Volume : 0.015625 FTQ
Model : SB19
UPC-EAN :
GSB19
New
Data sheet
- Product Characteristic
- NTC Resistance of 10K Ohms at 77 F (25 C)
Temperature Range: -58 to 221 F (-50 to 105 C)
PFS Precision Full Scale: 1 percent FS
Response Timer: Less than 8 seconds (in stirred water)
Tensile Test: Pmax 4 kgf - Model
- SB19
- Sales Unit
- EA
- Origin
- Brazil
- US Tariff Code
- 8418.99.8060
- Base Unit
- EA
- Dimensions
- 3 x 3 x 3
Specific References
- UPC
- MPN
- SB19
