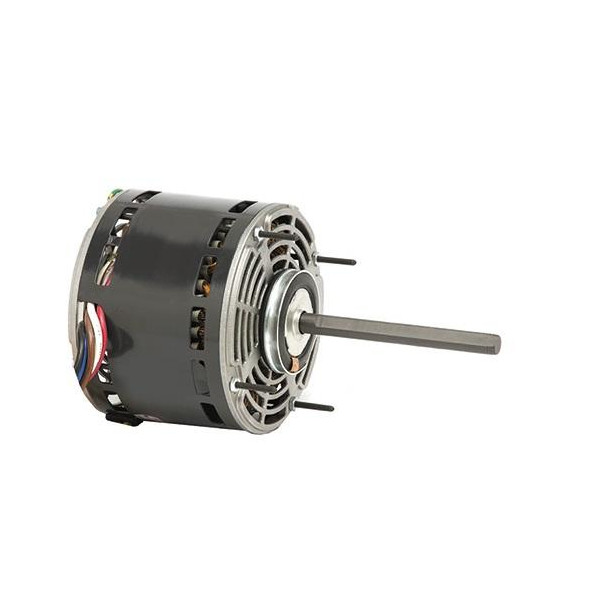

US Motors 1971 1/4 Hp 1075 rpm, 6 poles, 1 shaft, OAO Enclosure, 3 speed, 5.6 diameter, CCW, Lead End, Reversible, 208-230 V, 60 hz, 1 ph, 7.5 mfd/370 VAC Run Capacitor K055WMH1251012B
SKU
G1971
US Motors 1971 1/4 Hp 1075 rpm, 6 poles, 1 shaft, OAO Enclosure, 3 speed, 5.6 diameter, CCW, Lead End, Reversible, 208-230 V, 60 hz, 1 ph, 7.5 mfd/370 VAC Run Capacitor K055WMH1251012B
Reliable PSC Direct Drive Motor – Permanent Split Capacitor (PSC) motor designed for condenser fan and blower applications, delivering dependable, continuous-duty performance.
Universal Installation – 5.6-inch diameter motor with reversible rotation, all-angle mounting capability, and included 2.5-inch hub rings for versatile replacement applications.
Built for Long Service Life – Features Class B insulation, automatic reset thermal overload protection, and an all-angle thrust bearing system for reliable operation.
Optimized for Outdoor HVAC Use – Open Air Over (OAO) design provides efficient cooling during operation and is engineered for continuous-duty HVAC applications.
Easy Replacement and Wiring – Compatible with 370V run capacitors, includes extended mounting studs on popular models, and provides wiring and capacitor information directly on the motor nameplate.
Weight : 9 LBR
Volume : 0.592592593 FTQ
Model : K055WMH1251012B
UPC-EAN : 786382002121
Reliable PSC Direct Drive Motor – Permanent Split Capacitor (PSC) motor designed for condenser fan and blower applications, delivering dependable, continuous-duty performance.
Universal Installation – 5.6-inch diameter motor with reversible rotation, all-angle mounting capability, and included 2.5-inch hub rings for versatile replacement applications.
Built for Long Service Life – Features Class B insulation, automatic reset thermal overload protection, and an all-angle thrust bearing system for reliable operation.
Optimized for Outdoor HVAC Use – Open Air Over (OAO) design provides efficient cooling during operation and is engineered for continuous-duty HVAC applications.
Easy Replacement and Wiring – Compatible with 370V run capacitors, includes extended mounting studs on popular models, and provides wiring and capacitor information directly on the motor nameplate.
Weight : 9 LBR
Volume : 0.592592593 FTQ
Model : K055WMH1251012B
UPC-EAN : 786382002121
G1971
New
Data sheet
- Model
- K055WMH1251012B
- UPC-EAN
- 786382002121
- Sales Unit
- EA
- Origin
- Mexico
- US Tariff Code
- 8501.20.6000
- Base Unit
- EA
- Dimensions
- 16 x 8 x 8
Specific References
- UPC
- 786382002121
- MPN
- K055WMH1251012B
