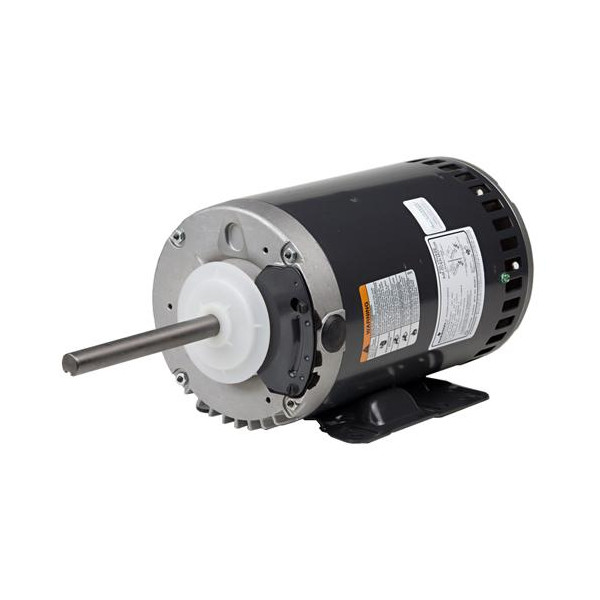

US Motors 3913 3/4 HP 1140 rpm, 208-230/460 V, 60 Hz, 1 shaft, TEAO Enclosure, 1 speed, 6.3 diameter, Reversible Rotation, Frame 56Y, P063TDA3813015B
SKU
G3913
US Motors 3913 3/4 HP 1140 rpm, 208-230/460 V, 60 Hz, 1 shaft, TEAO Enclosure, 1 speed, 6.3 diameter, Reversible Rotation, Frame 56Y, P063TDA3813015B
Use: Designed to meet manufacturers requirements for condenser cooling fans in commercial air conditioning applications where 3 phase power is required
Automatic Reset Thermal Overload Protector. Continuous Duty, Air Over
Double-Sealed Ball Bearings. Dual Voltage
Class B Insulation. 140 F (60 C) Ambient Rated
Shaft-up Mounting
Weight : 12 LBR
Model : P063TDA3813015B
UPC-EAN : 786382084493
Use: Designed to meet manufacturers requirements for condenser cooling fans in commercial air conditioning applications where 3 phase power is required
Automatic Reset Thermal Overload Protector. Continuous Duty, Air Over
Double-Sealed Ball Bearings. Dual Voltage
Class B Insulation. 140 F (60 C) Ambient Rated
Shaft-up Mounting
Weight : 12 LBR
Model : P063TDA3813015B
UPC-EAN : 786382084493
G3913
New

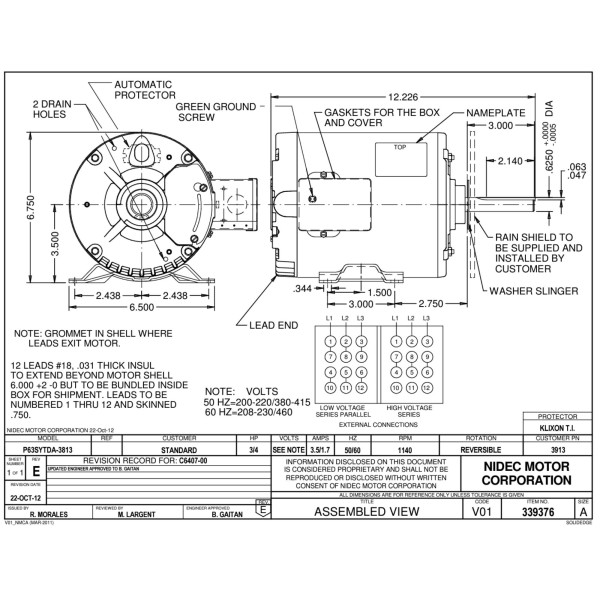

Data sheet
- Product Characteristic
Use: Designed to meet manufacturers requirements for condenser cooling fans in commercial air conditioning applications where 3 phase power is required
Automatic Reset Thermal Overload Protector. Continuous Duty, Air Over
Double-Sealed Ball Bearings. Dual Voltage
Class B Insulation. 140 F (60 C) Ambient Rated
Shaft-up Mounting- Model
- P063TDA3813015B
- UPC-EAN
- 786382084493
- Sales Unit
- EA
- Origin
- Mexico
- US Tariff Code
- 8501.20.6000
- Base Unit
- EA
Specific References
- UPC
- 786382084493
- MPN
- P063TDA3813015B
